| サイズ: | 3 3/4" （95.3mm） ~26" （660.4mm） | 圧力: | 2000-20000のpsi |
|---|---|---|---|
| 適用: | 健康な訓練 | 色: | 白い赤 |
| 媒体: | 水/オイル/ガス | パッケージ: | 木の場合 |
| ハイライト: | Wellhead Mandrel Type Casing Hanger,3000psi Mandrel Type Casing Hanger,Well Drilling Mandrel Casing Hanger |
||

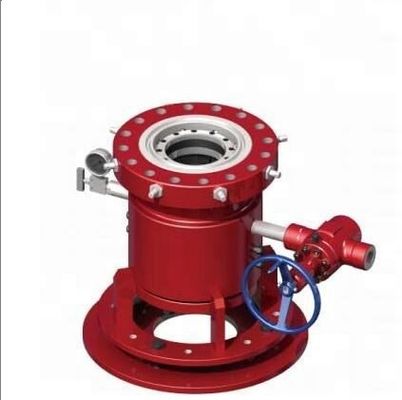

Wellhead Equipment API 6A Mandrel Type Casing Hanger
Product Descrption
The lowest part of the wellhead that is almost always connected to the surface casing string, and provides a means of suspending and packing off the next casing string. Providing attachment to the surface casing string through the type of bottom connection (Slip-on-weld, threaded, Sliploc), the casing head is typically qualified to withstand up to 10,000 psi working pressure. It suspends the casing and packs off the next casing string while providing annular outlets, as well as supporting the BOP while drilling the remaining stages.
Our products could match the following brand:
FMC, CAMERON, CONTROL FLOW, DKG, DRILLQUIP, CE, VECTOGREY, WEATHERFORD, WEIRSEABOARD,WOOD GROUP, WOM, STREAM FLO. EXPRO, MI SWACO, T3.
Basic Parameters
Main Features of Our Wellhead Casing Hanger
Technical Parameters of TR Wellhead Casing Hanger
| Rated operating pressure psi(MPa) |
Nominal bore diameter in(mm) |
Bypass bore diameter in(mm) |
Outer diameter of the casing for the hangerin(mm) |
| 2000(13.8) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 3000(20.7) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 5000(34.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 10000(69.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 15000(103.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 20000(138.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
The target of TR Solids Control: To establish an international first-class enterprise, and become a professional petroleum equipment supplier,supply chain company and oilfield engineering services company.; "providing the most qualified products, most competitive prices and most professional service for every customer " as its mission and Provide consistent after-sales service.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
