20000psi API 6A Oilfield 21 1/4" Wellhead Casing Head

専門の固体は製造業者を制御する。プロダクト取り替えのシェーカー スクリーンに長いサービス時間およびよい処置がある。それらは私達をたくさん助ける!

—— Samir氏

私は10 TRの固体制御からのPC TRSB8*6-12Jの遠心ポンプを購入しました。それらは格好良く、実際に良質がおよび販売サービスの後で思慮深いあります!

—— ワーレン氏

私達は私達の油田鋭い分野のために一組の泥システム、場所のTRのプロダクトによって示されている良い業績を発注しました。私達はこと多く好みます!

—— ディエゴOlbrich

TRのシェーカー スクリーンに最上質およびよい価格があります。私達は4年ずっと間以上TRからのそれらを購入しています。

—— Nghiem Thic Hai

素晴らしいサービスおよび良質および高い評判のよい会社。 私達の信頼できる製造者の 1 つは時間および素晴らしいパッケージで、商品渡されます。

—— Hossein Jafari

あなたの良いアフターサービスをお寄せいただきありがとうございます。優れたトレーニングと技術サポートは私に多くのことができます。

—— Crina氏

私達は私達の顧客の油田の場所、適正価格の完全な機械で2012年以来の使用TRZS703頁岩のシェーカーを、今私達持っています働く8セットを始めます。

—— S.A. Kazi

オンラインです

20000psi API 6A Oilfield 21 1/4" Wellhead Casing Head

20000psi API 6A Oilfield 21 1/4" Wellhead Casing Head
20000psi API 6A Oilfield 21 1/4" Wellhead Casing Head 20000psi API 6A Oilfield 21 1/4" Wellhead Casing Head 20000psi API 6A Oilfield 21 1/4" Wellhead Casing Head

大画像 :  20000psi API 6A Oilfield 21 1/4" Wellhead Casing Head

商品の詳細:
起源の場所: 西安中国
ブランド名: TR Solids Control
証明: API 6A, ISO 9001
モデル番号: TRYGT
お支払配送条件:
最小注文数量: 1 PC
価格: 交渉可能
パッケージの詳細: パレットか木の場合
受渡し時間: 20日
支払条件: L/C、D/A、D/P、T/T、ウェスタン・ユニオン
供給の能力: 1ヶ月あたりの80000 PC
詳細製品概要
サイズ: 9" - 21 1/4" 圧力: 2000 ~20000psi
適用: 油井 素材: ANSI 4130
包装: 木の場合 標準: API 6A
ハイライト:

21 1/4" Wellhead Casing Head

,

Oilfield Wellhead Casing Head

,

API 6A Drill Spare Parts

API 6A Oilfield Equipment Wellhead Casing Head 7 1/16"



Product Overview

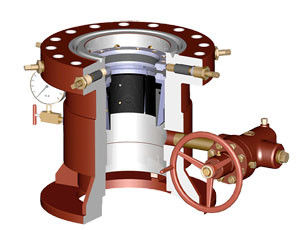

The casing head is a kind of part of connecting casings and wellheads. It is used to support the weight of technical casing and intermediater casing and seal the annular space between the casings, which provideds a transition joint for the installation of the tubing head,christmas tree and other wellheads.



The two -side -outlet design allows the casing head to supply cement ,monitor and control well's sinking, and inject the balance liquid etc. Casing head design features a 45 degree landing shoulder. This design avoids damage to sealing areas by drilling tools and prevents test plug and blow protector wedging problems when pressure is applied. This design also allows for accuratevertical positioning of annular seals, control line porting and test ports.



Specification and Features


Rugged & Reliable: Optional integral double FS-seal, P-seal and Metal-to-Metal seal bottom preparation for HTHP applications.
Versatile Engineering: WOM Casing Head Spools are designed to accept WC-21, WC-22 and WC-29 casing slip hangers as well as Mandrel casing hangers.
Industry Certified: WOM Casing Head Spools are manufactured to API 6A specifications and are rated to 15,000 PSI.



Design Advantages of Our Casing Head



  • Versatile straight-bore design,Uses a 45°landing shoulder.
  • Accepts a wide variety of slip and mandrel casing hangers.
  • Has a additional lockscrews for Bowl protection.
  • Allows use of lockscrews to retain hanger.
  • Three different types of outlets: Line pipe, Flanged (Studded) Extended flanged outlets.
  • Multiple bottom connections, such as: Slip-on weld, Slip-on weld with O-ring, Threaded and Sure Lock.



Technical Data of TR Wellhead Casing Head



Top flange Surface casing Intermediate casing Production casing
11"-35MPa 13 3/8" 9 5/8" 7"
5 1/2"
11"-70MPa 13 3/8" 9 5/8" 7"
5 1/2"
11"-105MPa 20"13 3/8" 9 5/8" 7"
5 1/2"
13 5/8"-35MPa 13 3/8" 9 5/8" 7"
5 1/2"
13 5/8"-70MPa 13 3/8" 9 5/8" 7"
9 5/8"
13 5/8"-105MPa 20" 13 3/8" 7"

5 1/2"





20000psi API 6A Oilfield 21 1/4" Wellhead Casing Head 0



Our Service



1.We will keep track of each customer to get the feedback of product quality and service. And we will make an amendment according to your feedback.
2.If the product size is wrong, we will send the right one freely.
3.We guarantee the high quality. Please feel free to contact us if you found any damage. We will solve the problems ASAP.
4.We can provide product repair services.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
