Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
ホーム 製品ドリルの予備品

3 3/4" Carbon Steel WD Type Oilfield Casing Hanger

専門の固体は製造業者を制御する。プロダクト取り替えのシェーカー スクリーンに長いサービス時間およびよい処置がある。それらは私達をたくさん助ける!

—— Samir氏

私は10 TRの固体制御からのPC TRSB8*6-12Jの遠心ポンプを購入しました。それらは格好良く、実際に良質がおよび販売サービスの後で思慮深いあります!

—— ワーレン氏

私達は私達の油田鋭い分野のために一組の泥システム、場所のTRのプロダクトによって示されている良い業績を発注しました。私達はこと多く好みます!

—— ディエゴOlbrich

TRのシェーカー スクリーンに最上質およびよい価格があります。私達は4年ずっと間以上TRからのそれらを購入しています。

—— Nghiem Thic Hai

素晴らしいサービスおよび良質および高い評判のよい会社。 私達の信頼できる製造者の 1 つは時間および素晴らしいパッケージで、商品渡されます。

—— Hossein Jafari

あなたの良いアフターサービスをお寄せいただきありがとうございます。優れたトレーニングと技術サポートは私に多くのことができます。

—— Crina氏

私達は私達の顧客の油田の場所、適正価格の完全な機械で2012年以来の使用TRZS703頁岩のシェーカーを、今私達持っています働く8セットを始めます。

—— S.A. Kazi

オンラインです

3 3/4" Carbon Steel WD Type Oilfield Casing Hanger

3 3/4" Carbon Steel WD Type Oilfield Casing Hanger
3 3/4" Carbon Steel WD Type Oilfield Casing Hanger 3 3/4" Carbon Steel WD Type Oilfield Casing Hanger 3 3/4" Carbon Steel WD Type Oilfield Casing Hanger

大画像 :  3 3/4" Carbon Steel WD Type Oilfield Casing Hanger

商品の詳細:
起源の場所: 西安中国
ブランド名: TR Solids Control
証明: API 6A, ISO 9001
モデル番号: TR-YGQ
お支払配送条件:
最小注文数量: 1 PC
価格: 交渉可能
パッケージの詳細: パレットか木の場合
受渡し時間: 20日
支払条件: L/C、D/A、D/P、T/T、ウェスタン・ユニオン
供給の能力: 1ヶ月あたりの90000 PC
詳細製品概要
圧力: 2000-20000のpsi サイズ: 3 3/4" (95.3mm) ~26" (660.4mm)
物質的なクラス: AAのBB、CC、DD、EE、FF、HH 指定のレベル: PSL1-PSL4
保証: 12か月 使用法: エネルギー及び鉱山
ハイライト:

WD Type Oilfield Casing Hanger

,

Carbon Steel Oilfield Casing Hanger

,

3 3/4" Drill Spare Parts

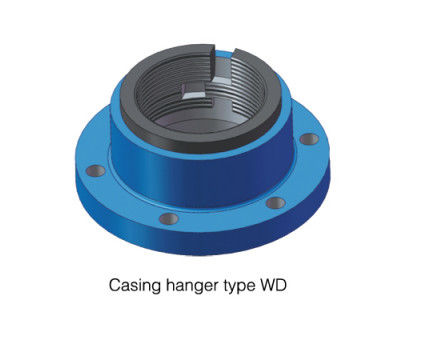

Carbon Steel WD Type Casing Hanger for Oilfield Wellhead



Product Descrption



Surface casing hangers are landed in the same manner as nonlatching models and do not require any special tools. Available in locking or non-locking configurations, the latching mechanism anchors the surface casing and prevents upward movement if the casing becomes buoyant during cementation.


Our products could match the following brand:
FMC, CAMERON, CONTROL FLOW, DKG, DRILLQUIP, CE, VECTOGREY, WEATHERFORD, WEIRSEABOARD,WOOD GROUP, WOM, STREAM FLO. EXPRO, MI SWACO, T3.



Basic Characterstics of Our Wellhead Casing Hanger



  • Slip type hanger type: G type, W type, WD type, WE type, etc.
  • W type hanger is casing self-respect strengthen sealed structure;
  • WE type and G type manual strengthen seal structure.
  • Casing hanger points thread type (core shaft), slip type two kinds big,
  • WD type suspension used for connecting casing head and surface casing, it through the external force that slip tooth hold casing;



Main Parameters of TR Wellhead Casing Hanger



Rated operating pressure
psi(MPa)
Nominal bore diameter
in(mm)
Bypass bore diameter
in(mm)
Outer diameter of the casing for the hangerin(mm)
2000(13.8) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
3000(20.7) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
5000(34.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
10000(69.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
15000(103.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
20000(138.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)



3 3/4" Carbon Steel WD Type Oilfield Casing Hanger 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited mainly engages in offering oil drilling and production equipment and providing oilfield technical service. Our target is to supply our products and spread company culture to all over the world. We will build a new stage, and we will welcome all the friends from all over the world, to cooperate sincerely and create our brilliant future!



Xi'an TianRui Petroleum Machinery Equipment Company Limited had explored the international market and enlarged international cooperation 10 years .Due to the competitive price ,good quality and excellent service ,our products are sold to America,Canada, Brazil, Columbia, Venezuela,India,Iran,UAE,Russia ,Kazakhastan,Italy,Hungary ,Australia,Syria,Egypt ,etc. We have get good reputation from our oversea clients.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
