Horizontal 5000PSI Wellhead Flange Adapter Spool

専門の固体は製造業者を制御する。プロダクト取り替えのシェーカー スクリーンに長いサービス時間およびよい処置がある。それらは私達をたくさん助ける!

—— Samir氏

私は10 TRの固体制御からのPC TRSB8*6-12Jの遠心ポンプを購入しました。それらは格好良く、実際に良質がおよび販売サービスの後で思慮深いあります!

—— ワーレン氏

私達は私達の油田鋭い分野のために一組の泥システム、場所のTRのプロダクトによって示されている良い業績を発注しました。私達はこと多く好みます!

—— ディエゴOlbrich

TRのシェーカー スクリーンに最上質およびよい価格があります。私達は4年ずっと間以上TRからのそれらを購入しています。

—— Nghiem Thic Hai

素晴らしいサービスおよび良質および高い評判のよい会社。 私達の信頼できる製造者の 1 つは時間および素晴らしいパッケージで、商品渡されます。

—— Hossein Jafari

あなたの良いアフターサービスをお寄せいただきありがとうございます。優れたトレーニングと技術サポートは私に多くのことができます。

—— Crina氏

私達は私達の顧客の油田の場所、適正価格の完全な機械で2012年以来の使用TRZS703頁岩のシェーカーを、今私達持っています働く8セットを始めます。

—— S.A. Kazi

オンラインです

Horizontal 5000PSI Wellhead Flange Adapter Spool

Horizontal 5000PSI Wellhead Flange Adapter Spool
Horizontal 5000PSI Wellhead Flange Adapter Spool Horizontal 5000PSI Wellhead Flange Adapter Spool Horizontal 5000PSI Wellhead Flange Adapter Spool

大画像 :  Horizontal 5000PSI Wellhead Flange Adapter Spool

商品の詳細:
起源の場所: 西安中国
ブランド名: TR Solids Control
証明: API 6A, ISO 9001
モデル番号: TRST
お支払配送条件:
最小注文数量: 1 PC
価格: 交渉可能
パッケージの詳細: パレットか木の場合
受渡し時間: 20日
支払条件: L/C、D/A、D/P、T/T、ウェスタン・ユニオン
供給の能力: 1ヶ月あたりの80000 PC
詳細製品概要
わずかな穴: 7 1/16」--29 1/2」 圧力: 2000 ~15000psi
構造: あくプログラム: 単段
健康なタイプ: よのシャーシ 適用: 油井
ハイライト:

Wellhead Flange Adapter Spool

,

5000PSI Flange Adapter Spool

,

Single Stage Horizontal Casing Spool

API 6A Wellhead Flange Adapter Spool Casing Spool



Product Introduction

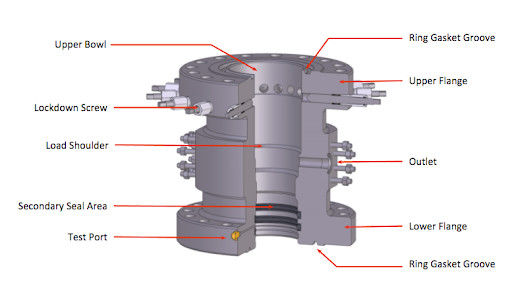

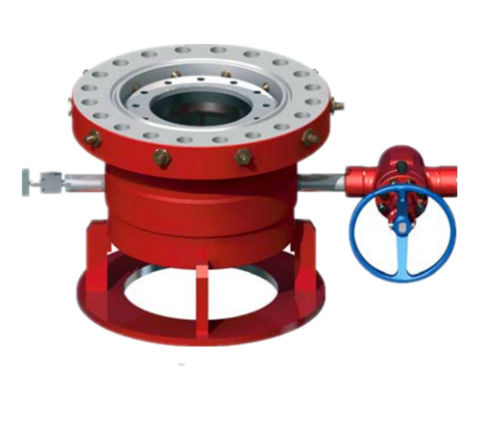

Casing head spool is a simple metal flange welded or screwed onto the top of the conductor pipe (also known as drive-pipe) or the casing and forms part of the wellhead system for the well.

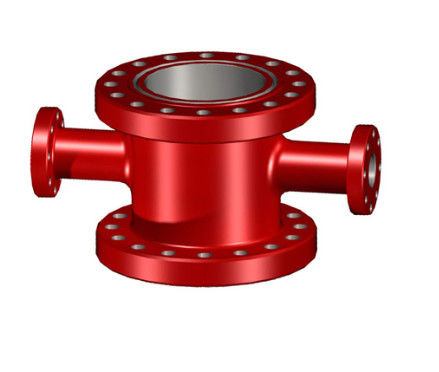

Spacer spool, in accordance with API 6A, have end connectors of the same size, rated working pressure and design. Spacer spool is wellhead sections which have no provision for suspension of tubular members and which may have no provision for sealing of tubular membersSpacer spool, in accordance with API 6A, have end connectors of the same size, rated working pressure and design. Spacer spool is wellhead sections which have no provision for suspension of tubular members and which may have no provision for sealing of tubular members.



Main Benefits of Our Casing & Tubing Drilling Spool



  • Designed and manufactured with reference to API 16A technical specifications.
  • All steel tanks are welded with stainless steel for long-term anti-corrosion.
  • Made from high-strength alloy and processed specially with heating treatment.
  • Fit for Hydrogen sulfide H2S resistant service, manufactured with reference to NACEMR-0175 technical specifications.
  • Used for high-pressure drilling, in conjunction with flat valve for preventing blowout and connecting BOP.
  • Top & bottom connections and outlets as per customer design requirements by either flanged or clamp connections.



Technical Information of Casing & Tubing Drilling Spool



Casing Spool
Bottom Flange size Working pressure Top Flange Size Working Pressure Outlet A B C D Approx.Weight
in psi in psi   in in in in lbs kg
11 3,000 11 3000 2-1/16"Stdd 20-5/8 10-1/4 10-7/8 10 755 344
11 3,000 11 5000 2-1/16"Stdd 22-1/4 12-3/4 10-7/8 10 835 380
11 5,000 11 5000 2-1/16"Stdd 23-7/8 12-3/4 10-7/8 10 910 414
11 5,000 11 10000 1-13/16"Stdd 24-3/4 13-5/8 10-7/8 10 1210 550
11 10,000 11 10000 1-13/16"Stdd 25-5/8 14-1/2 10-7/8 10 1410 641
13-5/8 3,000 11 3000 2"LP 22-5/8 10-1/4 10-7/8 10 680 310
13-5/8 3,000 11 3000 2-1/16"Stdd 22-5/8 10-1/4 10-7/8 10 799 364
13-5/8 3,000 11 5000 2"LP 25-1/4 12-3/4 10-7/8 10 1140 519
13-5/8 3,000 11 5000 2-1/16"Stdd 25-1/4 12-3/4 10-7/8 10 1168 531
13-5/8 5,000 11 5000 2-1/16"Stdd 25-1/8 12-3/4 10-7/8 10 1430 650
13-5/8 5,000 11 10000 1-13/16"s 26 13-1/2 10-7/8 10 1631 742
21-1/4 2,000 13-5/8 3000 2-1/16"Stdd 26-3/4 10-5/8 13-1/2 12-1/2 1755 798
20-3/4 3,000 13-5/8 3000 1-13/16"s 27-5/8 10-5/8 13-1/2 12-1/2 1855 844
20-3/4 3,000 13-5/8 5000 2-1/16"Stdd 28-5/8 12-1/8 13-1/2 12-3/8 1950 887



Horizontal 5000PSI Wellhead Flange Adapter Spool 0



Our Service


1.We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. And the products have a long warranty period.
2.Our sales team will response for your question within 24 hours (Holidays Excluded)
3.Free replacement will provide once the failure confirmed caused by our product quality.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
