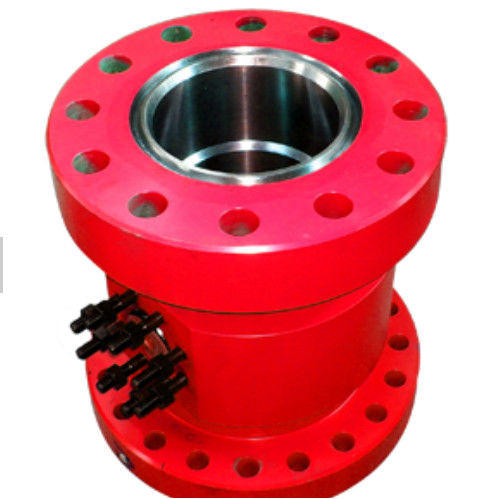

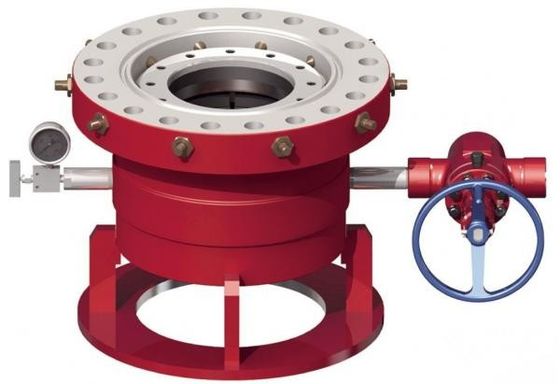

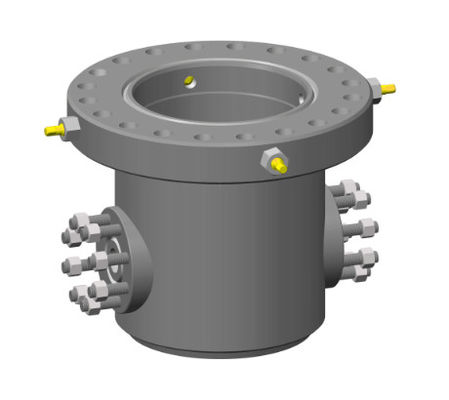

Oil Drilling 15000 PSI API 6A Wellhead Casing Head

Oil Drilling 15000 PSI API 6A Wellhead Casing Head
Oil Drilling 15000 PSI API 6A Wellhead Casing Head Oil Drilling 15000 PSI API 6A Wellhead Casing Head Oil Drilling 15000 PSI API 6A Wellhead Casing Head

大画像 :  Oil Drilling 15000 PSI API 6A Wellhead Casing Head

商品の詳細:
起源の場所: 西安中国
ブランド名: TR Solids Control
証明: API 6A, ISO 9001
モデル番号: TRYGT
お支払配送条件:
最小注文数量: 1 PC
価格: 交渉可能
パッケージの詳細: パレットか木の場合
受渡し時間: 20日
支払条件: L/C、D/A、D/P、T/T、ウェスタン・ユニオン
供給の能力: 1ヶ月あたりの80000 PC
詳細製品概要
サイズ: 9" - 21 1/4" 適用: エネルギー及び鉱山
圧力: 2000-15000 Psi 証明書: API 6A
サービス: 完全な売り上げ後のサービス 包装: 木箱
ハイライト:

API 6A Wellhead Casing Head

,

15000 PSI Wellhead Casing Head

,

PSL1 Welded Casing Head

API 6A Wellhead Casing Head / X-mas Tree for Oil Drilling



Product Descrption



Casing Head is the very important equipment used in drilling process. casing head can control the wellhead pressure,casing head are often welded or screwed on the top of the conductor pipe or the casing then become a part of the wellhead system of the oil well.



In addition to providing various types of single-stage casing heads, two-stage casing heads, three-stage casing heads and other products, the company can also design and manufacture four-stage casing heads, as well as slip hangers and threaded (mandrel) type suspensions. Device, integral thread(mandrel) type casing head, etc. Can also design and manufacture various special casing heads according to user needs



Casing Head-Bottom thread connection


(1)Bottom of the casing head connects surface casing by various types of threads,such as CSG,LCSG,BCSG,TM,ETC.
(2)Convenience and rapid in installation,safe and reliable in operation.



Structural Features of Our Wellhead Casing Head



  • Optional integral double FS-seal, P-seal and Metal-to-Metal seal bottom preparation for HTHP applications.
  • Top connection are API 6A flanged, and the flanges are provided with locking bolts.
  • Casing hanger has straight type seat bore 45degree cone of hanging shoulders with strong loading bolts.
  • Structural type of the matched casing hanger: slip and mandrel.
  • Outlet connection can be thread, bolted flange.
  • Bottom connection can be threaded, welded or slip.



Technical Specifications of TR Wellhead Casing Head



Casing Program 20"×133/8" ×95/8" ×7" or 51/2"
Flanged Outlet PFF35/80:R35
PFF70/65:BX153
Load Capacity Mixmum 5000KN
Hanger Specification 4",41/2",5",51/2",7"
Working Pressure 35MPa~70MPa
Performance Requirement Grade PR1
Product Specification Grade PSL1-3
Temperature P·U(-29~121)
Material Class AA~FF



Oil Drilling 15000 PSI API 6A Wellhead Casing Head 0



Xi'an TianRui Petroleum Machinery Equipment Company is a professional manufacturer of cementing tools and other petroleum equipment in China. We have the certificatesof API-5CT, API-10D, API-11E, API-6A, API-11AX, API 5D,ISO9001:2008, ISO14001:2004 etc. We are the first-class supplier of resources market of SINOPEC and CNPC. Our products include cement tools, drilling tools, OCTG pipes, Mining equipment and other petroleum equipment. They are exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia , African , Australia,Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-calss products, first-class service and reasonable prices.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
